Unity Tips - Creating Native DLLs for Procedural Generation

During my time at Lab4Tech, I was actively preparing for industry-recognized certifications:

• C++ CLA & CPP from the C++ Institute
• Unity Professional Programmer from Unity

I wanted more than textbook knowledge. I needed a real-world project where I could combine high-performance C++ with Unity’s C# ecosystem.

That became the motivation behind Dungeon Forge: a native C++ DLL powering procedural dungeon generation, fully integrated into Unity.

This project was more than just “making a DLL”. It was an exploration into:

• Cross-language interop (C++ ↔ C#).
• Designing efficient, reusable libraries.
• Profiling and optimizing game-related systems.
• Building custom Unity Editor tooling for seamless developer experience.

The Problem: Procedural Generation at Scale

Procedural content generation in Unity often runs into two bottlenecks:

• Performance:
  C# alone can be limiting for heavy algorithmic workloads (e.g., cellular automata iterations, BSP tree construction).
• Extensibility:
  Unity projects rarely expose low-level optimization levers for procedural workflows.

Technical Solution: Dungeon Forge DLL

My goal was to encapsulate advanced map generation algorithms in a native library, making them reusable across projects without rewriting the same logic in Unity each time.

The DLL provides multiple map generation algorithms, each with different use cases:

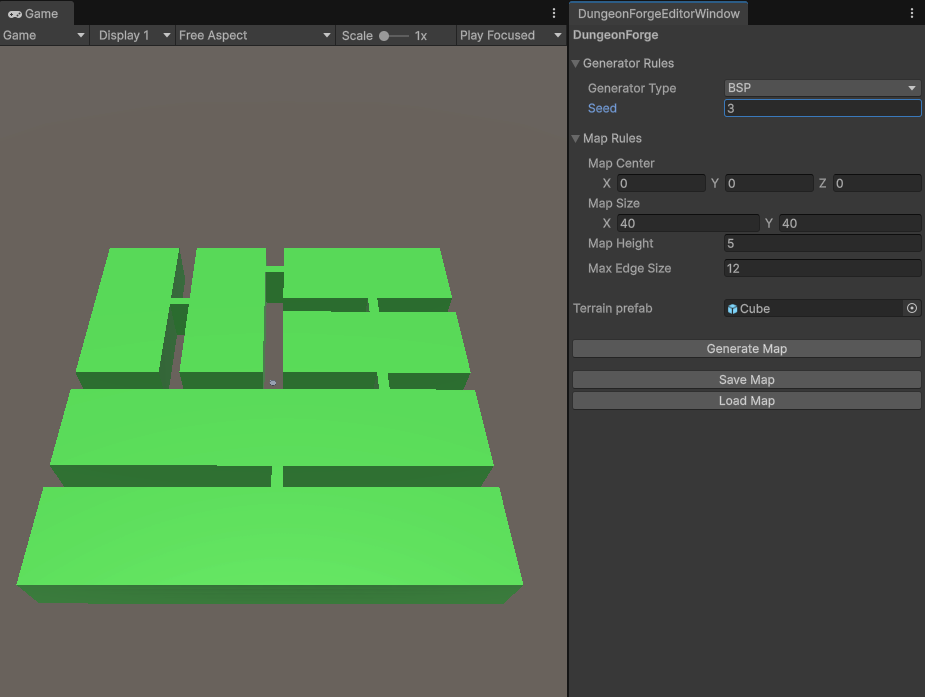

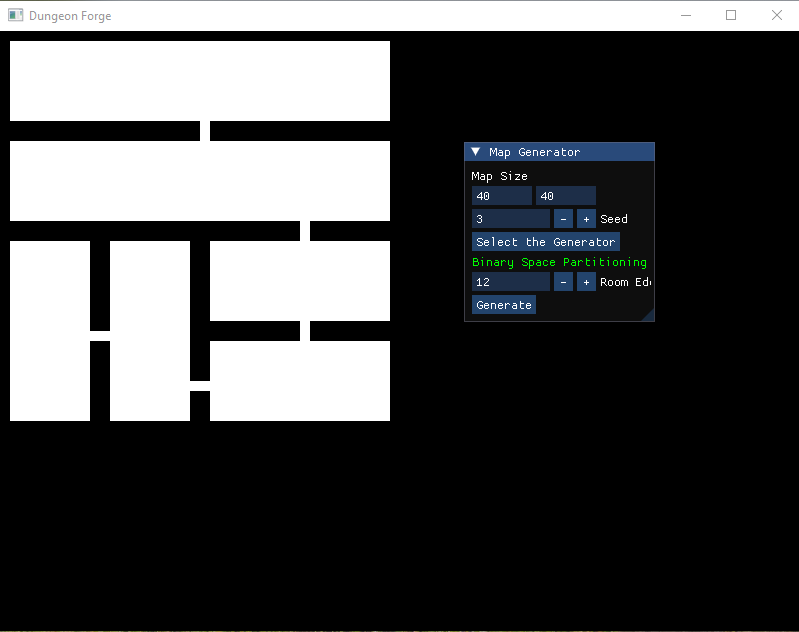

• Binary Space Partitioning (BSP): Recursive space subdivision for structured dungeons.

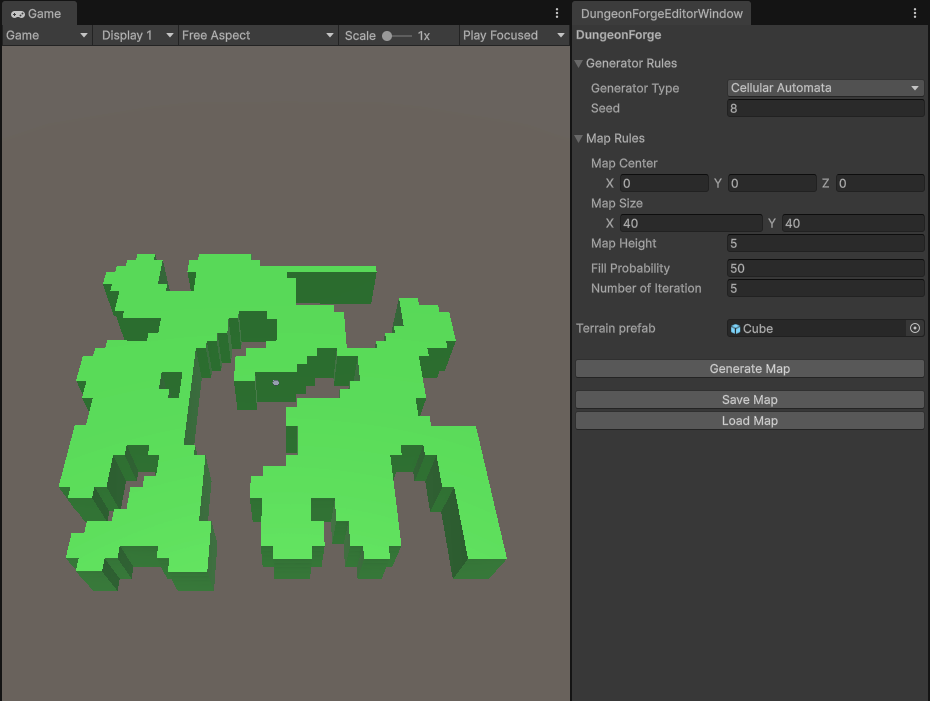

• Cellular Automata (CA): Organic cave-like environments.

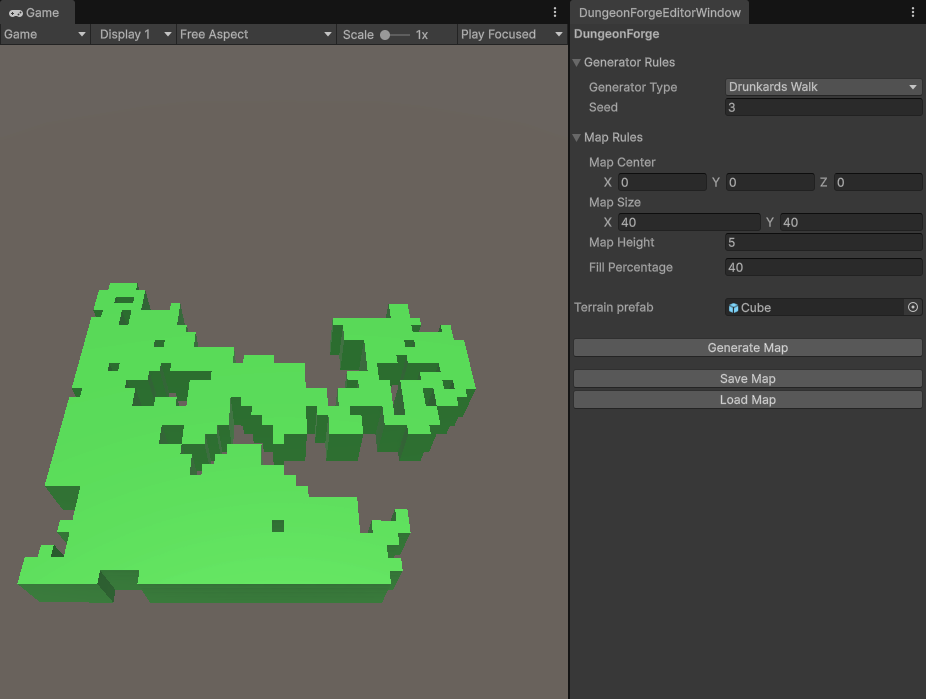

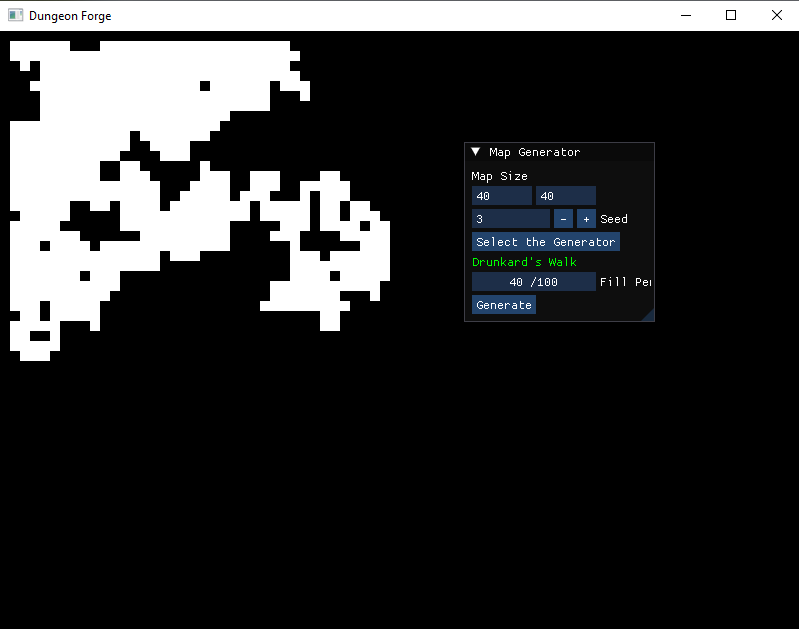

• Drunkard’s Walk: Random walk-based tunnels, suitable for roguelike layouts.

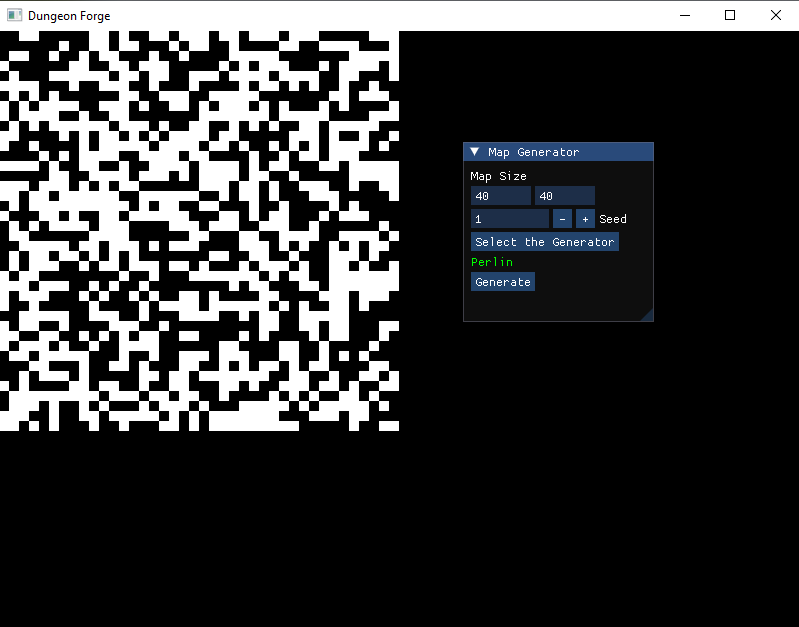

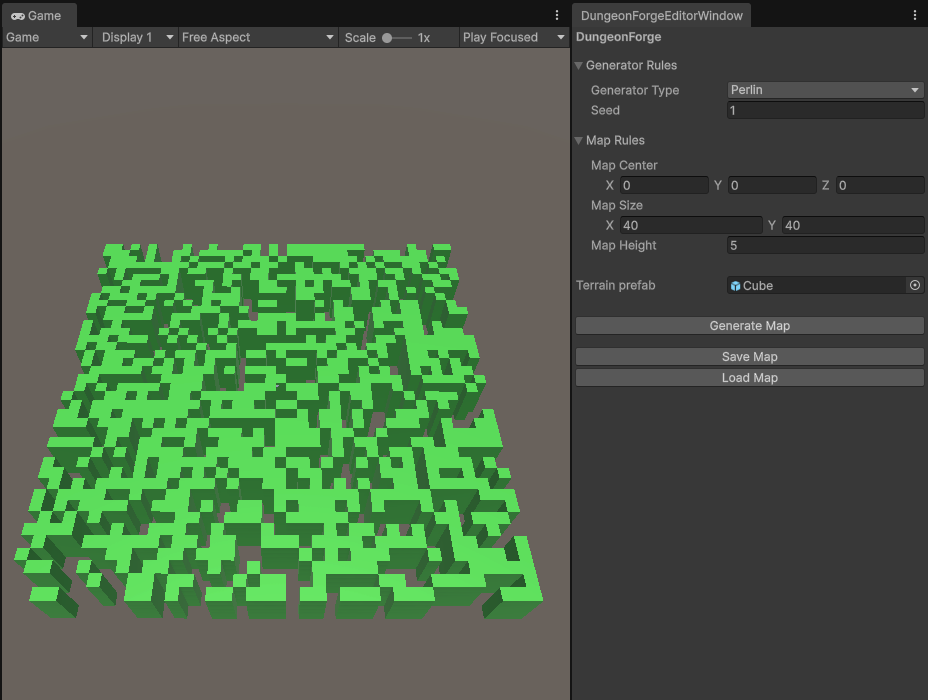

• Perlin Noise: Used primarily for benchmarking randomness and map density.

I initially experimented with Wave Function Collapse (WFC).
However, its complexity (non-trivial constraint propagation, state explosion, and edge cases) made it unstable within my initial 10-day timeframe. This was an important engineering decision: I prioritized robustness and maintainability over incomplete features.

Engineering the Native Library (C++)

Build System & Tooling

• CMake was used for cross-platform build management.
• vcpkg handled dependency management (e.g., SFML, ImGui).
• Tracy Profiler enabled performance instrumentation at the C++ level.

A critical part of the CMake configuration was ensuring proper DLL export symbols:

cmake_minimum_required(VERSION 3.31)

project("DungeonForge")

set(CMAKE_CXX_STANDARD 20)
set(CMAKE_CXX_STRANDARD_REQUIRED ON)

# {... Rest of the CMake File ...}

#DLL EXPORT
# Enable automatic symbol export
SET(CMAKE_WINDOWS_EXPORT_ALL_SYMBOLS ON)
include_directories(include/)

# Collect source files
file(GLOB_RECURSE LIB_FILES src/ *.cpp include/ *.hpp)

# Build shared library
add_library(DungeonForgeLib SHARED ${LIB_FILES})

# Generate export header
include(GenerateExportHeader)
generate_export_header(DungeonForgeLib)

This setup ensured that class methods and functions were properly exposed to Unity.

DLL Export Strategy

C++ classes cannot be directly marshaled into Unity C#. To solve this, I designed a C API layer over my C++ classes:

//dllexport.h
#pragma once

#ifndef EXPORTS
#define DF_API __declspec(dllexport)
#else
#define DF_API __declspec(dllimport)
#endif

The Generator class (encapsulating procedural logic) was then wrapped with C-style exports:

//Generator.hpp
#pragma once
#include "dllexport.h"
#include "Map.hpp"
//{... All the C++ includes needed ...}

class Generator
{
public:
private:
};
extern "C"
{
    DF_API Generator* CreateGenerator(unsigned int width, unsigned int height);
    DF_API void DeleteGenerator(Generator* instance);
    DF_API void Generate(Generator* instance);
    // {... Rest of the exported funtions ...}
}

//Generator.cpp
#include "Generator.hpp"
//DLL EXPORT
#pragma region DLL
DF_API Generator* CreateGenerator(unsigned int width, unsigned int height)
{
    return new Generator(width, height);
}
DF_API void DeleteGenerator(Generator* instance)
{
    delete instance;
}
DF_API void Generate(Generator* instance)
{
    if (instance == nullptr) return;
    instance->generate();
}
//{... Rest of the Exported functions ...}

This pattern allowed Unity to hold a raw pointer (IntPtr in C#), without needing to understand C++ object layouts.

This is the diagram shows how data and calls move across the language boundary:

Memory Management & Safety

The DLL interface was carefully designed to avoid dangling pointers and leaks:

• Factory/Destructor pattern (CreateGenerator / DeleteGenerator).
• Null-check guards before running operations.
• Seed management via std::mt19937 for reproducible procedural results.

This ensured deterministic behavior while keeping Unity free from memory management concerns.

Unity Integration (C# Wrapper)

DLL Import

On the Unity side, I created a thin C# wrapper using DllImport:

//Generator.cs
 private static IntPtr generatorInstance;

 [DllImport("DungeonForgeLib.dll")]
 private static extern IntPtr CreateGenerator(uint width, uint height);

 [DllImport("DungeonForgeLib.dll")]
 private static extern void DeleteGenerator(IntPtr generatorInstance);

 [DllImport("DungeonForgeLib.dll")]
 private static extern void Generate(IntPtr generatorInstance);
 //{... Rest of the methods declaration ...}

This allowed Unity to allocate, configure, and trigger generation entirely from managed code:

//Generator.cs
        public static void Generate()
        {
            generatorInstance = CreateGenerator((uint)mapSize.x, (uint)mapSize.y);
            SetSeed(generatorInstance, m_seed);
            SetAlgorithm(generatorInstance, (int)m_algorithmType);
            switch (m_algorithmType)
            {
               //{... Algorithm parameters ...}
            }
            Generate(generatorInstance);
            GeneratePhisicalMap(m_mapSize, m_mapHeight, m_mapCenter);
        }

The biggest challenge here was interop debugging: mismatched calling conventions, struct marshalling, and parameter mismatches all led to runtime crashes. By carefully isolating responsibilities (C++ for algorithms, C# for orchestration), I minimized the error surface.

Here is a diagram showing how the procedural engine runs independently of Unity before passing results back:

Developer Experience: Unity Editor Window

To make the system usable by other developers, I built a custom Unity Editor Window:

//DungeonForgeEditorWindow.cs
[MenuItem("Tools/DungeonForge/MapGenerator")]
static void Init()
{
    // Get existing open window or if none, make a new one:
    DungeonForgeEditorWindow window = (DungeonForgeEditorWindow)EditorWindow.GetWindow(typeof(DungeonForgeEditorWindow));
    window.Show();
}

with the following features:

• Foldout groups for clean organization of algorithm settings.
  Example: Foldout groups for the “Generator Rules”:

//DungeonForgeEditorWindow.cs
 m_generatorRules = EditorGUILayout.Foldout(m_generatorRules, new GUIContent(
"Generator Rules",
"Possibility to change the Type of Algorithm and the Seed used for map generation"));
 if (m_generatorRules)
 { /*{... Content of the generator rules ...}*/}

• Undo/Redo support (via Undo.RecordObject).
• Immediate Repaint on changes for responsive UI.
  Example: Selecting algorithms via EnumPopup with full undo support:

//DungeonForgeEditorWindow.cs
EditorGUI.BeginChangeCheck();
AlgorithmType algorithmType = (AlgorithmType)EditorGUILayout.EnumPopup
(
       new GUIContent
       (
           /*{... Description content ...}*/
        ), m_algorithmType
);
if (EditorGUI.EndChangeCheck())
{
    Undo.RecordObject(this, "Modified AlgorithmType");
    m_algorithmType = algorithmType;
    DungeonForge.Generator.SetAlgorithmType(m_algorithmType);
    EditorUtility.SetDirty(this);
    Repaint();
}

• Buttons directly calling DLL functions.
  Example: Button calling the Generate() function of the DLL

//DungeonForgeEditorWindow.cs
if (GUILayout.Button("Generate Map"))
{
    DungeonForge.Generator.Generate();
}

This approach meant that designers could iterate procedurally generated maps without writing code.

Here is a diagram showing developer ergonomics: not just code, but how someone actually uses this system.

Bonus: Map Persistence

I implemented JSON-based save/load for maps:

• Save: Serializes grid data (1 = wall, 0 = ground, “\n” = new line) into JSON.

/// <summary>
/// Save the currently displayed map
/// </summary>
/// <param name="invertLines">if true inverts the Y writing order (starts at the bottom-left)(</param>
public static void SaveMap(bool invertLines = false, bool isDataPersistent = false)
{
    SaveData mapData = new SaveData();
    mapData.mapSize = m_mapSize;
    mapData.mapHeight = m_mapHeight;

    string mapString = "";
    /*{... Nested for loop on x and y, writing:
     "1" walls, "0" ground, "\n" new line
     }*/
    mapData.mapTiles = mapString;
    string json = JsonUtility.ToJson(mapData);

    string path;
    path = isDataPersistent ? Application.persistentDataPath : Application.dataPath;
    File.WriteAllText(path + "/SavedMap.json", json);

}

• Load: Reconstructs physical maps directly from JSON files.

/// <summary>
/// Loads a JSON file and reinterprets it in an instantiated 3D map
/// </summary>
public static void LoadMap(bool wasDataPersistent = false)
{
  // 1. Loading of the Map
  // 2. Deletion of previous physical map
  // 3. Instantiation of loaded map*/
}

• Custom class: Saves data for JSON parsing:

    [System.Serializable]
    class SaveData
    {
        public Vector2Int mapSize;
        public uint mapHeight;
        public string mapTiles;
    }

This feature made maps shareable and persistent, bridging procedural workflows with level design workflows.

Lessons Learned & Engineering Takeaways

• Interop is brittle
  Small mismatches (struct alignment, calling conventions) can crash Unity. Testing in isolation (SFML + ImGui test project) was invaluable before moving into Unity.

• Profiling matters
  Using Tracy revealed algorithm bottlenecks (especially with cellular automata iterations). Optimizing random number generation and memory allocations gave noticeable performance gains.

• Abstraction layers pay off
  The C API between C++ and Unity simplified debugging and future-proofed the library.

• DX (Developer Experience) is as important as performance
  A custom Editor Window transformed the project from “interesting” to “usable.”

Conclusion

This project gave me end-to-end exposure to:

• Building and exporting native C++ DLLs.
• Marshaling data and ensuring safe cross-language integration.
• Profiling and optimizing procedural algorithms.
• Creating intuitive Unity Editor tooling for production use.

Dungeon Forge was more than a side project. It was a demonstration of engineering workflows, blending low-level C++ performance with Unity’s accessibility.

👉 If you’re a Unity or C++ engineer, you’ll recognize the challenges hidden in cross-language systems.
This project taught me how to navigate those pitfalls and design solutions that are both powerful and user-friendly.
